Product advantages:
1. Precise control, with multiple functions such as pressure control and displacement control

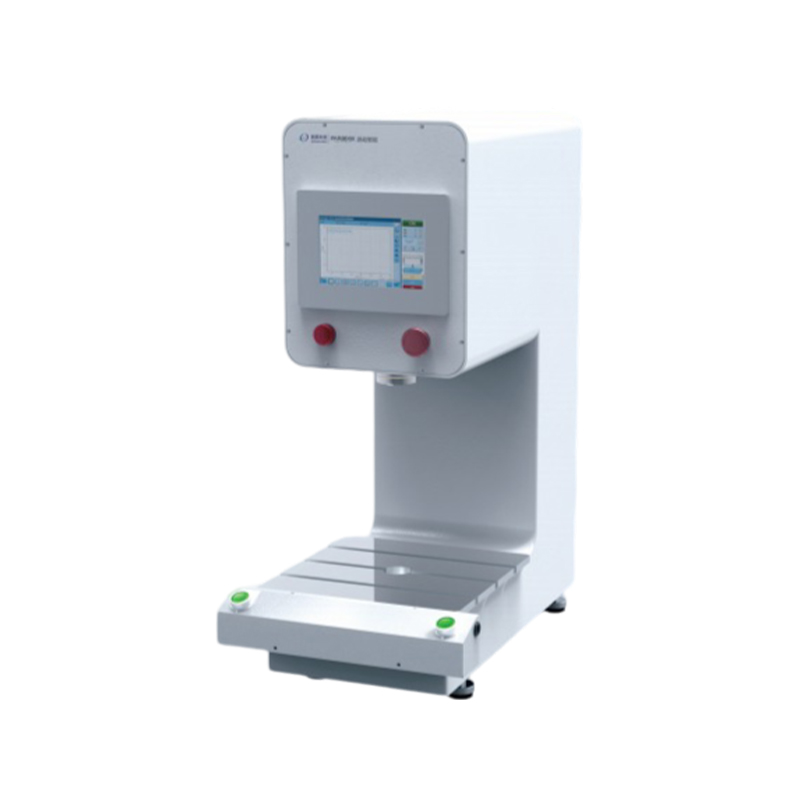

2. C-type structure, using C-type casting structure, simple and beautiful appearance. Very small space restriction on the workpiece.
3. Easy to operate, the equipment uses a touch screen and button operation interface.
4. Safe and reliable, with fault alarm and protection functions.
5. Lightweight system, fixed five-step press-fitting process.
Application areas:
1. Bearing press-fitting. In the field of bearing press-fitting, the desktop four-column servo press can ensure the precise fit between the bearing and the shaft or hole, and improve the installation accuracy and service life of the bearing.
2. Pin press-fitting. For parts that need to install pins, the servo press can provide stable pressure and displacement control to ensure the accurate installation and firmness of the pins.
3. Buckle press-fitting. In the field of buckle press-fitting, the servo press can achieve fast and precise installation of buckles, improving the assembly efficiency and quality of products.

Technical Parameters
Series Model	PDSP-T03-F003-S150-B	PDSP-T03-F005-S150-B	PDSP-T03-F010-S150-B
Rated output(N)	3000	5000	10000
Maximum output (N)	3500	6000	12000
Pressing speed (mm/s)	30	30	30
No-load running speed (mm/s)	230	230	200
Bottom platform size (mm)		300x300
Throat depth(mm)	150
Opening size (mm)	270
Body rigidity (N/μm)	67
Effective stroke(mm)	150
Repeatability under the same load (mm)	0.02
Pressure accuracy	0.5%F.S
Power(W)	600	1000	1700
powered by	AC 220V 50Hz
Weight(kg)	165
