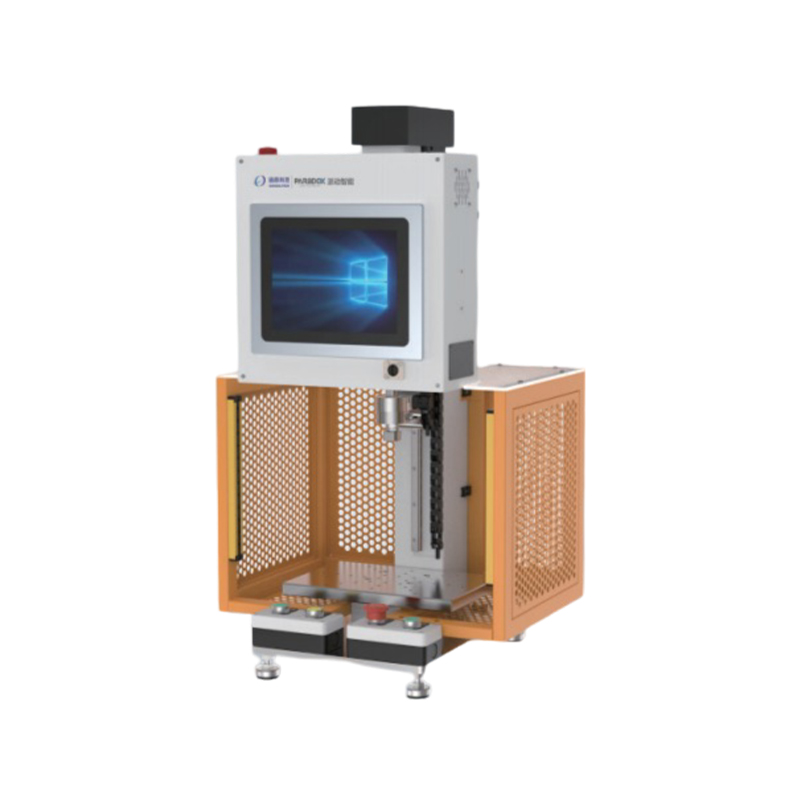

Processing OEM/ODM High-quality High-end Desktop C-Type Press in Paris Maker & Factory-Zhitong

Product advantages:
1. Precise control, with multiple functions such as pressure control and displacement control.
2. C-type structure, adopts C-type frame structure, with less space restriction and strong flexibility.
3. Easy to operate, the equipment adopts touch screen and button operation interface.
4. Safe and reliable, with fault alarm and protection functions.
5. Lightweight system, fixed five-step press-fitting process.
Application areas:
1. Bearing press-fitting. In the field of bearing press-fitting, the desktop four-column servo press can ensure the precise matching of bearings and shafts or holes, and improve the installation accuracy and service life of bearings.
2. Pin press-fitting. For parts that need to install pins, the servo press can provide stable pressure and displacement control to ensure the accurate installation and firmness of the pins.
3. Buckle press-fitting. In the field of buckle press-fitting, the servo press can realize the fast and precise installation of buckles, and improve the assembly efficiency and quality of products.

Technical Parameters
Series Model	PDSP-T02
Rated pressure	kN	2.5	5
Mode Selection	Pressure mode/position mode
Maximum speed	mm/s	416	208
Repeatability	mm	0.01
Stroke length	mm	150	150
Pressure accuracy		±0.5%F.S
Rated Power	kW	1.25	1.25
Supply voltage	V	Single phase AC 220V
Features	1. Drive and control integrated, low cost and high efficiency;
	2. Standard safety light curtain;
	3. High-precision servo control system.
