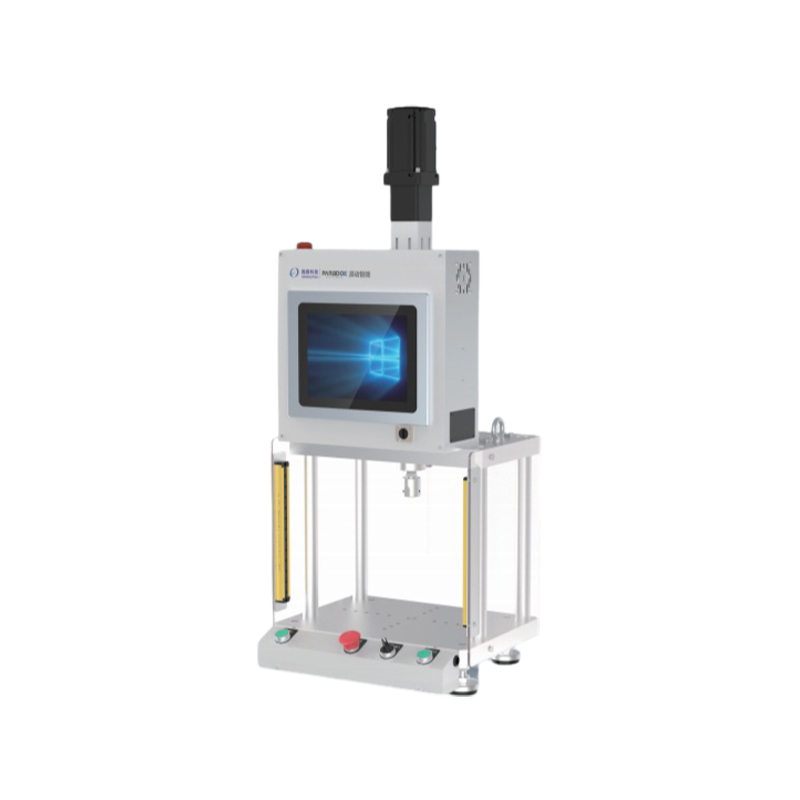

Design Professional High-end OEM/ODM Paris Desktop Four-Column Press in Suppliers & Maker-Zhitong

Product advantages:
1. Precise control, with multiple functions such as pressure control and displacement control.
2. Four-column structure, using four vertical columns as support, with extremely high stability and rigidity.
3. Easy to operate, the equipment uses a touch screen and button-type operation interface.
4. Safe and reliable, with fault alarm and protection functions.
5. Lightweight system, fixed five-step press-fitting process.
Application areas:
1. Bearing press-fitting. In the field of bearing press-fitting, the desktop four-column servo press can ensure the precise fit between the bearing and the shaft or hole, and improve the installation accuracy and service life of the bearing.
2. Pin press-fitting. For parts that need to install pins, the servo press can provide stable pressure and displacement control to ensure the accurate installation and firmness of the pins.

3. Buckle press-fitting. In the field of buckle press-fitting, the servo press can achieve fast and precise installation of buckles, improving the assembly efficiency and quality of products.

Technical Parameters
Series Model	PDSP-T01
Rated pressure	kN	2.5	5
Mode Selection	Pressure mode/position mode
Maximum speed	mm/s	416	208
Repeatability	mm	0.01
Stroke length	mm
Pressure accuracy		±0.5%F.S
Rated Power	kW	1.25	1.25
Supply voltage	V	Single phase AC 220V
Features	1. Drive and control integrated, low cost and high efficiency;
	2. Standard safety light curtain;
	3. High-precision servo control system.
